UCC Core Module

UCC Core module With Compas Pro

3U Shelf - ACE186

Maximum power

10800W

Height

3U

AC/DC

Yes

DC/DC

No

3U Shelf - ACE306

Maximum power

18000W

Height

3U

AC/DC

Yes

DC/DC

Yes

1U Shelf - ACE104

Maximum power

4000W

Height

1U

AC/DC

Yes

DC/DC

Yes

1U Shelf - ACE105

Maximum power

5000W

Height

1U

AC/DC

Yes

DC/DC

Yes

3kW Rectifier - CAR30100TP-A

Power

3000W

Input voltage

90 to 265Vac / 85 to 402Vdc

Output voltage

80 to 115Vdc

UCC

Universal Compas Controller

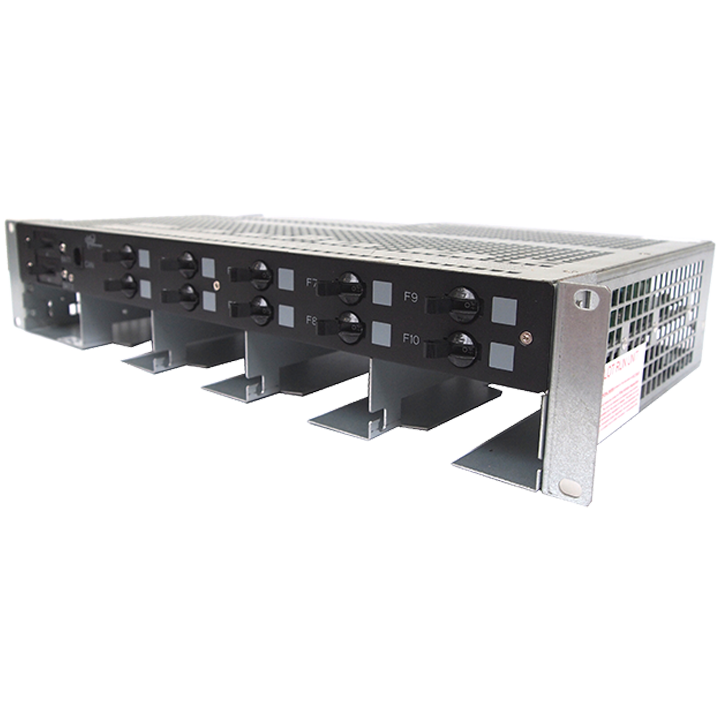

2U Shelf with DISTRIBUTION - CAPTIN 1000BW

Maximum power

4000W

Height

2U

AC/DC

Yes

DC/DC

Yes

1U Shelf with DISTRIBUTION - CAPTIN 300FA

Maximum power

1200W

Height

1U

AC/DC

Yes

DC/DC

No

1U Shelf with DISTRIBUTION - ACE102FALP

Maximum power

2000W

Height

1U

AC/DC

Yes

DC/DC

Yes

3U Shelf - ACE106

Maximum power

6000W

Height

3U

AC/DC

Yes

DC/DC

Yes

ADIO 10

Interconnection Module supporting 8 digital inputs, 4 SELV Voltage measurement, 2 shunts, 2 temperature sensors (NTC based), 8 relays, (main usage is for DC systems management)

MCU0348M4

1U high controller for CAPTIN300 with LCD - no comp@s

ADIO 07

Interconnection Module supporting 24 digital inputs, 8 temperature sensors (NTC based)

LEC0148TN

Power

140W

Input voltage

90 to 265Vac

Output voltage

43 to 58Vdc

2U Shelf with DISTRIBUTION - CAPTIN 1000FA

Maximum power

4000W

Height

2U

AC/DC

Yes

DC/DC

Yes

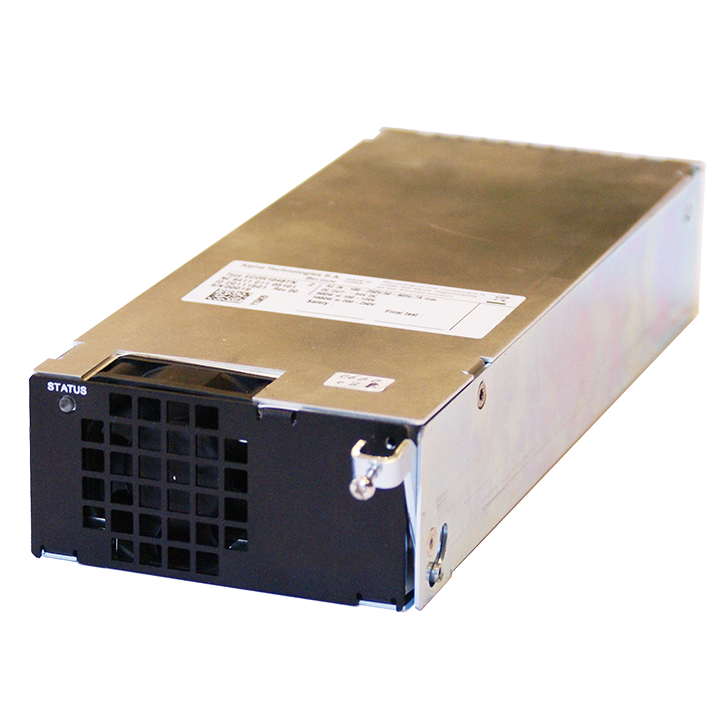

300W Rectifier - ECOR0348TN-1A

Power

300W

Input voltage

90 to 265Vac

Output voltage

43 to 58Vdc

1kW Rectifier - CAR1024TP

Power

1000W

Input voltage

90 to 264Vac

Output voltage

20 to 29Vdc

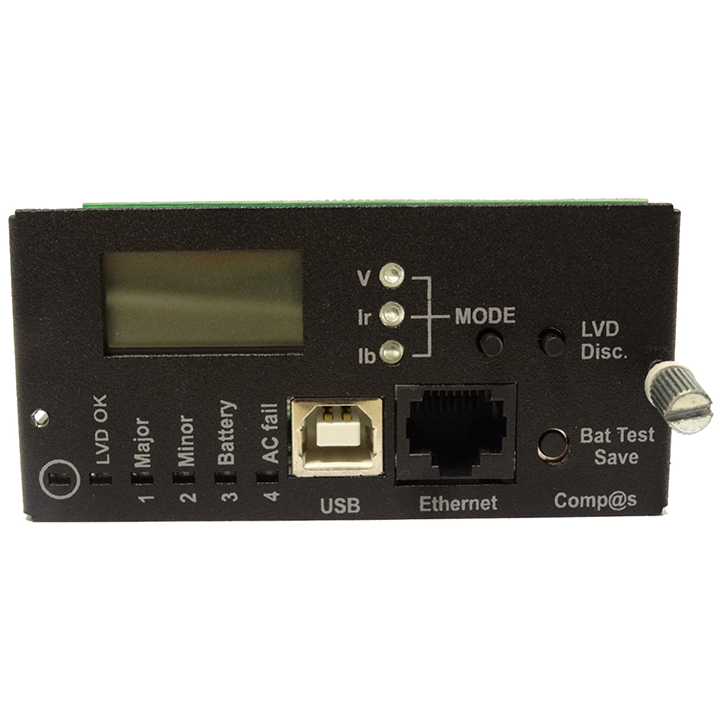

MCU0948M4

1U high Controller for 850W/1000W systems dry alarm only (no comp@s card)

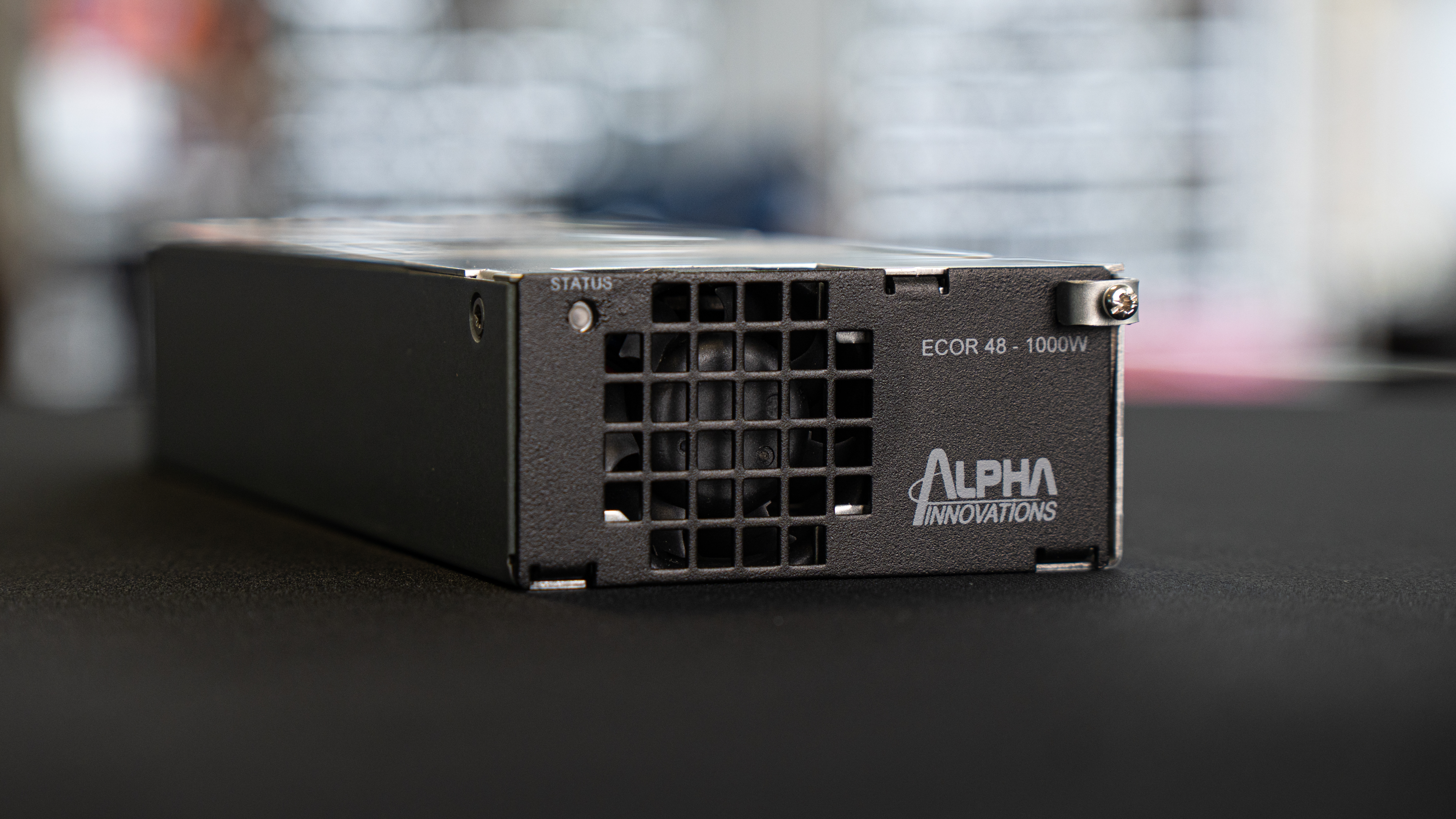

1kW Rectifier ECOR1048TN

Power

1000W

Input voltage

90 to 265Vac

Output voltage

40.5 to 58Vdc

LEC140D48FN/IP68

Power

140W

Input voltage

230Vrms

Output voltage

48Vdc

MCU30110M6

ACE306 Monitoring Control Unit - Isolated

300W Rectifier - ECOR0348TN-2A

Power

300W

Input voltage

90 to 265Vac

Output voltage

43 to 58Vdc

1kW DCDC - CDC1024TP

Power

1000W

Input voltage

80 to 300Vdc

Output voltage

20 to 29Vdc

1kW DCDC - CDCWI1048TN

Power

1000W

Input voltage

20.4 to 57.6Vdc

Output voltage

40.5 to 58Vdc

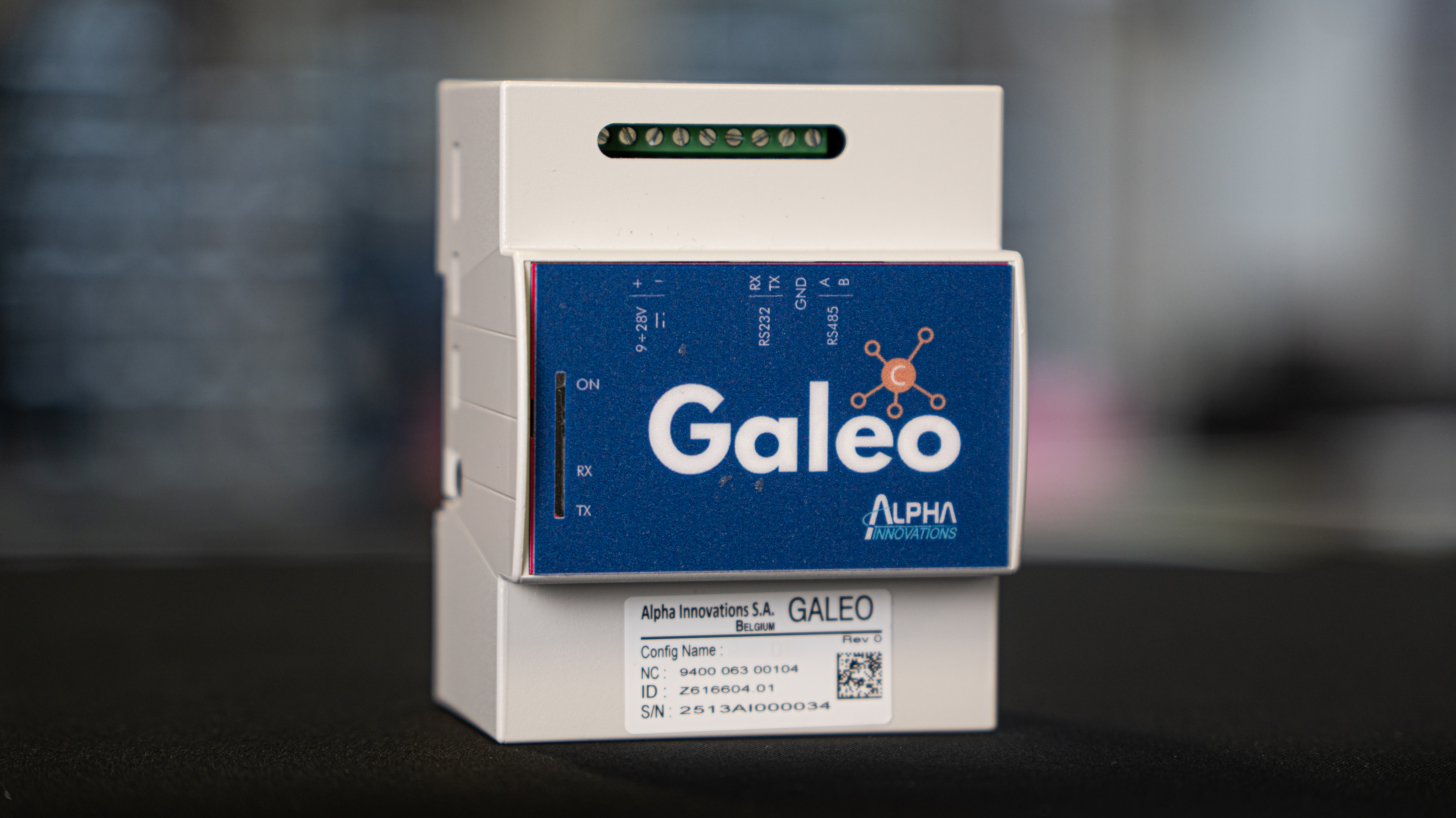

COMPAS Gateway - GALEO

GALEO Family

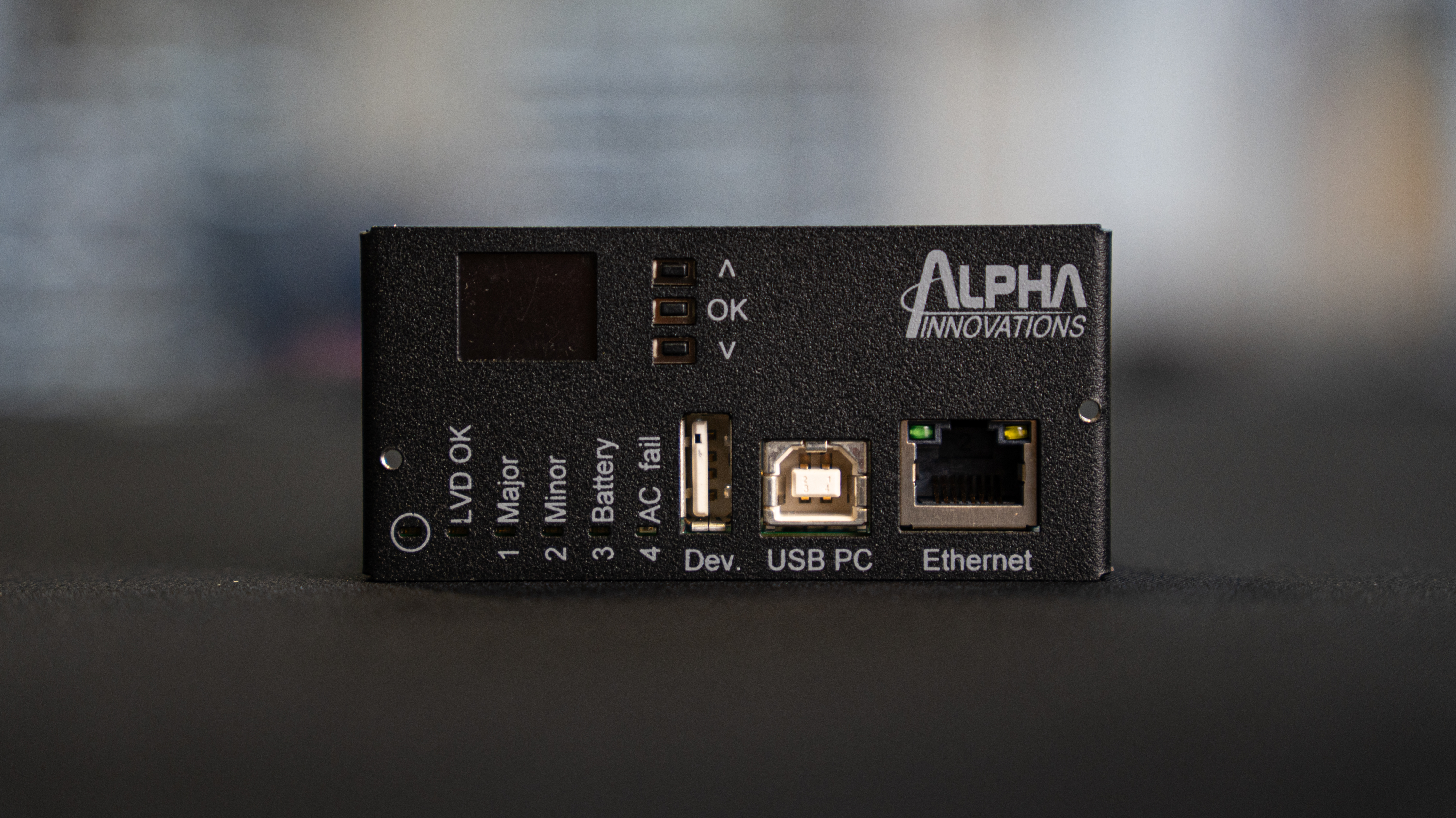

MCU0x48M4 1U WITH OLED Screen

MCU0x48M4 1U WITH OLED Screen

1.8kW Rectifier - CAR1848TN

Power

1800W

Input voltage

150 to 280Vac

Output voltage

-40 to -57Vdc

1kW Rectifier - ECOR1048TN.

Power

1000W

Input voltage

90 to 265Vac

Output voltage

40.5 to 58Vdc
