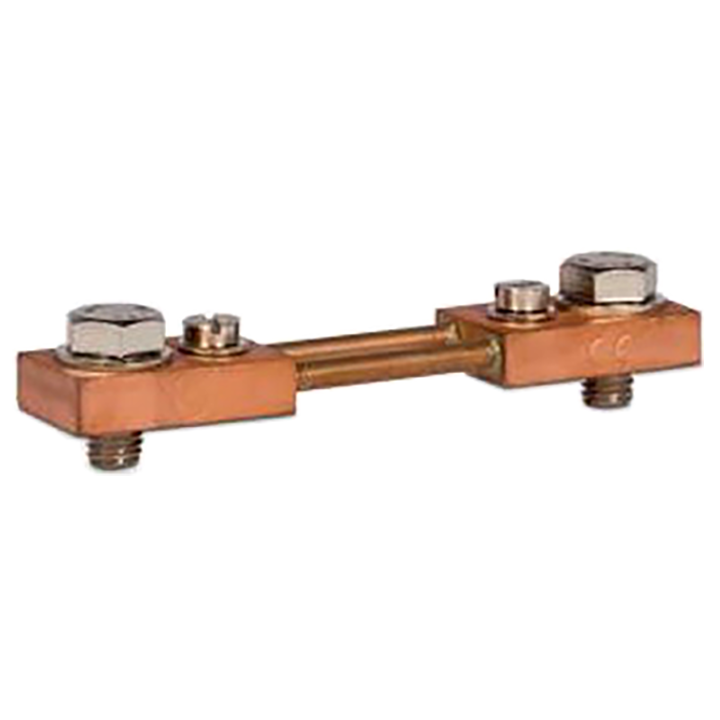

SHUNT 60mV F1

Contact us

Summary

  • High value current connection on direct current circuits
  • Accuracy : 0,5%
  • Form 1


Description

Measuring Range :
  • 1; 1.5; 2.5; 4; 5; 6;
  • 10; 15; 20; 25; 30; 40
  • 50; 60; 80; 100; 150



Datasheet

Electrical

  • Voltage Drop: 60mV

Features

  • Accuracy: 0,5%
  • Overloads:
    •  1.2 In continiously
    • 10 In 5s (10-500A)

Mechanical

  • Weight : 0.120-0.140 kg

Environmental

  • Operating: -20 to 60°C

Standards

  • DIN 43703 standard

Standard Part Numbers

  • : Shunt 60mV Form F1 for DC
